VR for Solid Edge  SimLab VR For Solid Edge

Solid Edge VR Creation


Your best choice to create interactive mechanical and simulation VR experiences from your Solid Edge designs, we provide you with a complete platform to learn, create, and share Interactive VR Experiences in the easiest way possible. It includes a library of 3D models and tools for creating immersive interactive virtual tours and also provides the ability to configure products and more. It is optimized for desktop computers, mobile devices, and Oculus, HTC Vive, and Pico devices.

SiMlab Soft VR For Solid Edge Mechanical
Virtual Reality Headsets

Can be
Shared On

SimLab VR Viewer with macOS

macOS

SimLab VR Viewer with WIN

win 64

SimLab VR Viewer with IOS

iOS

SimLab VR Viewer with Android

Android

SimLab VR Viewer with VIVE

VIVE

SimLab VR Viewer with oculus

Oculus Devices

Pico VR

Pico VR

Mixed Reality

Mixed Reality

shadow

Easy Steps?

shadow
1

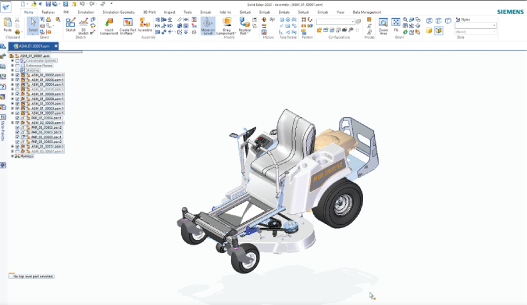

Save the Solid Edge model as *.asm or *.prt

Save the Solid Edge model as *.asm or *.prt

2
Make sure to download the latest version of SimLab VR Studio

Make sure to download the latest version of SimLab VR Studio

3
Open the VR Studio and sign up/sign in to your account

Open the VR Studio and sign up/sign in to your account

4
Click on Create Empty Scene button

Click on "Create Empty Scene" button

5

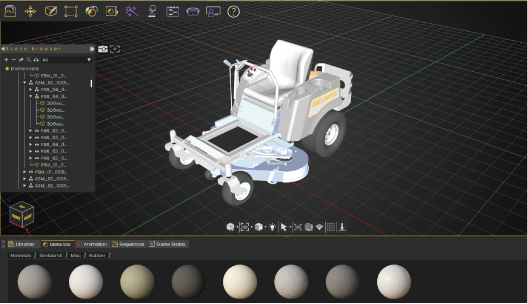

After that go to File, Import, and choose the model saved in step 1

After that go to "File > Import", and choose the model saved in step 1

6

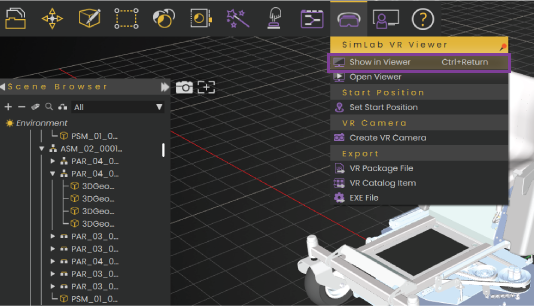

Go to VR Viewer, Show in Viewer, Note: If SimLab VR Viewer is not installed, VR Studio will give you a link to install it first

Go to VR Viewer   " > Show in Viewer"
Note: If SimLab VR Viewer is not installed, VR Studio will give you a link to install it first

7

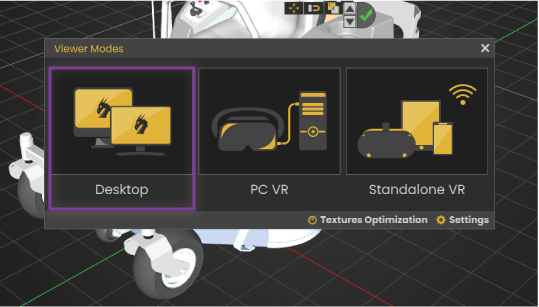

Three options available for vieweing the model; Desktop, PC VR, and Standalone VR. let's choose for now

Three options available for vieweing the model; Desktop, PC VR, and Standalone VR. let's choose for now "Desktop", for more details about the three ways here is the link

For Sharing And VR Collaboration:

8
Go to VR Viewer, export, VR Package File

Go to "VR Viewer > export > VR Package File"

9
Open SimLab VR Viewer, sign in, then upload the model to share it by click,Add Model, button

Open SimLab VR Viewer, sign in, then upload the model to share it by click "Add Model" button

10

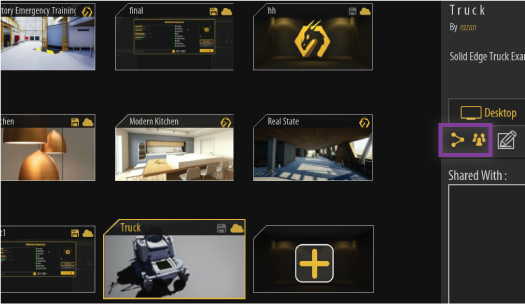

Now choose the model you uploaded, and click on the share icon or invite for collaboration, for more information about sharing click here, for more information about collaboration click here

Now choose the model you uploaded, and click on the share icon or invite for collaboration, for more information about sharing click here, for more information about collaboration click here

shadow

What do you get when integrating SimLab with Solid Edge?

After importing Solid Edge With a few clicks to SimLab VR Studio, you can have an interactivity scene ready to be viewed on VR and shared with others with the following properties

Easy few steps to have your first VR course running!
Easy Steps

Easy few steps to have your first VR course running!

+18 supported 3D/CAD/VR file formats to read and import.
3D Files Support

+30 supported 3D/CAD/VR file formats to read and import.

Import and create animation for objects to be interactively played in VR
Animations

Import rigid and flexible animations modify them, and play and control them inside VR

Add customizable visual effects to your scenes and bring life to them.
VFX

Add customizable visual effects to your scenes and bring life to them.

Make objects interactive by assigning actions to them in very few clicks
Object Actions

Make objects clickable and assign actions to them in seconds.

Ultimate control over the environment and the lighting
Lightning

Ultimate control of your environment and lightning

A large set of VR-ready assets of 3D models, materials, lights, environments and more
SimLab Library

A large set of VR-ready assets of 3D models, materials lightening, environments, and more

The most comprehensive visual tool to create event-based logical interactions in the scene
The Training Builder

The most comprehensive visual tool to create interactions and logic in a VR experience.

Create functional, interactive, safe, and effective VR vocational training.
VR Vocational Training

Create functional, interactive, safe, and effective VR vocational training.

Utilize object BIM attributes to make dynamic behaviors for objects in your scenes.
Object Attributes

Utilize object BIM attributes to make dynamic behaviors for objects in your scenes.

User-Defined Check Points

Define specific checks and events in the VR experience so you can track viewers' achievements and progress.

Uploading a lesson to SimLab Cloud VR experiences on SimLab Cloud servers after which you can share them with others using the SimLab VR Viewer
SimLab Cloud Sharing

Uploading a lesson to SimLab Cloud, VR experiences on SimLab Cloud can be shared with others and viewed using the SimLab VR Viewer


shadow
FAQ

- How I can run my VR experience on the Oculus Quest / Pico device?

Simply upload your VR experience to your account using SimLab VR Viewer on your desktop, then on SimLab VR Viewer on the VR headset, sign in to your SimLab account and run your experience.

SimLab Separator

- What are the supported 3D file formats?

A wide range of 3D file formats are supported for import/export, for a list of the supported formats in SimLab VR Studio, please visit our Supported 3D Formats Page.

SimLab Separator

- How i can start a VR Collaboration session/experience?

To start a collaboration session, follow the instructions in this guide.

SimLab Separator

- How many users i can invite to my VR session? is it free?

You can start with the free edition of SimLab VR collaboration which will give you the ability to create as many VR collaboration sessions as you want and you can invite 1 person/session for a total of 3 hours of sessions per month, for more details here is the link.

SimLab Separator

- How I can create basic VR experiences?

You can follow our guide for creating your first VR; Creating your first VR Experience.

SimLab Separator

- What is VR Training Builder?

VR training builder is a very easy-to-use node editor that enables you to build logic and scenarios in your VR scenes and control different objects and interactivities just by dragging and connecting simple functional nodes together.

SimLab Separator

- What's a vrpackage file?

The vrpackage file is a 3D VR scene that has been created using SimLab Composer, it is one file that contains all of the scene elements including the 3D models, textures, environment settings, interactive elements, and even the package information such as the title and the description. The vrpackage file can be opened by SimLab VR Viewer which is available for PCs, smartphones, and VR headsets. SimLab VR Viewer is the core of SimLab Sharing, it’s where you upload, manage, and share the VR scenes.

SimLab Separator

- What is SimLab VR Cloud Sharing?

SimLab Cloud Sharing is a place to upload your VR scenes where they can be accessed from different platforms, to share your visualization outputs into your devices and with other users, more information can be found here.
