Composer GUI



SimLab Composer interface is organized into workbenches.  Upon selecting a workbench the allocated tools in that workbench will appear, and the primary tools, properties, task, and navigator panel in the interface will be changed to display the defaults of that selected workbench.

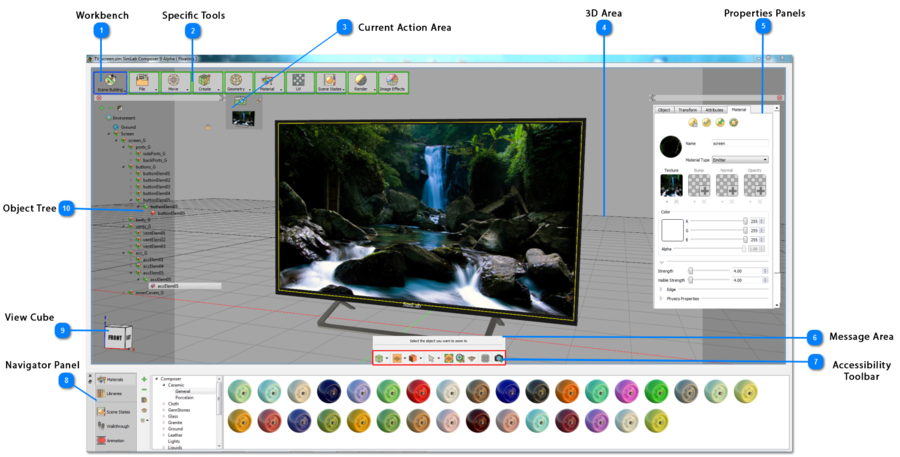

There are several elements that provide structure to how the commands are presented in the user interface, as shown below. Shown in red are the Accessibility Toolbar, shown in green are the Specific Tools, and in blue is the workbenches Icon. Also as shown below, the application interface has different sections.
