Design Group

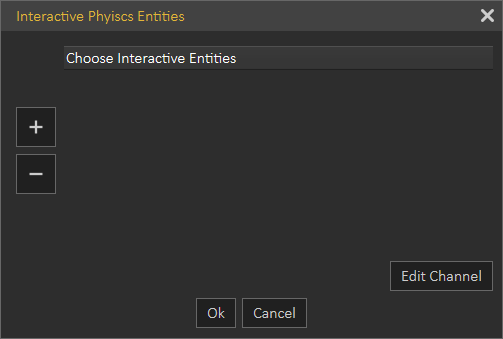

  • Design Panel: A button that launches the Interactive Physics Entities dialog box.
  • Parameters: A button that launches the Simulation Parameters dialog box.


  • The Design Tab includes the following setting fields, as shown in the following image:




Plus: It is a button with green plus icon.
Minus: It is a button with green minus icon.
OK: To confirm and accept settings.
Cancel: To abort operation.



The interactive Simulation Parameter dialog box appears when the Parameters button is clicked. This dialog box is a preference pane contains multiple panels, using tabs as a navigational widget for switching among three sets of settings. The three tabs are: General, Solver, and Advanced.


The Simulation Parameters dialog box is the same as the Simulation Parameters dialog box found in the Simulation Tab except for the General tab.
Interactive Simulation supports pointer devices, sliders, keyboards, and joysticks.
