Features created in SimLab Composer allow the user to perform basic modifications and improvements to 3D models in order to improve the realism of 3D scene without needing to revert to a CAD application.





Sweep

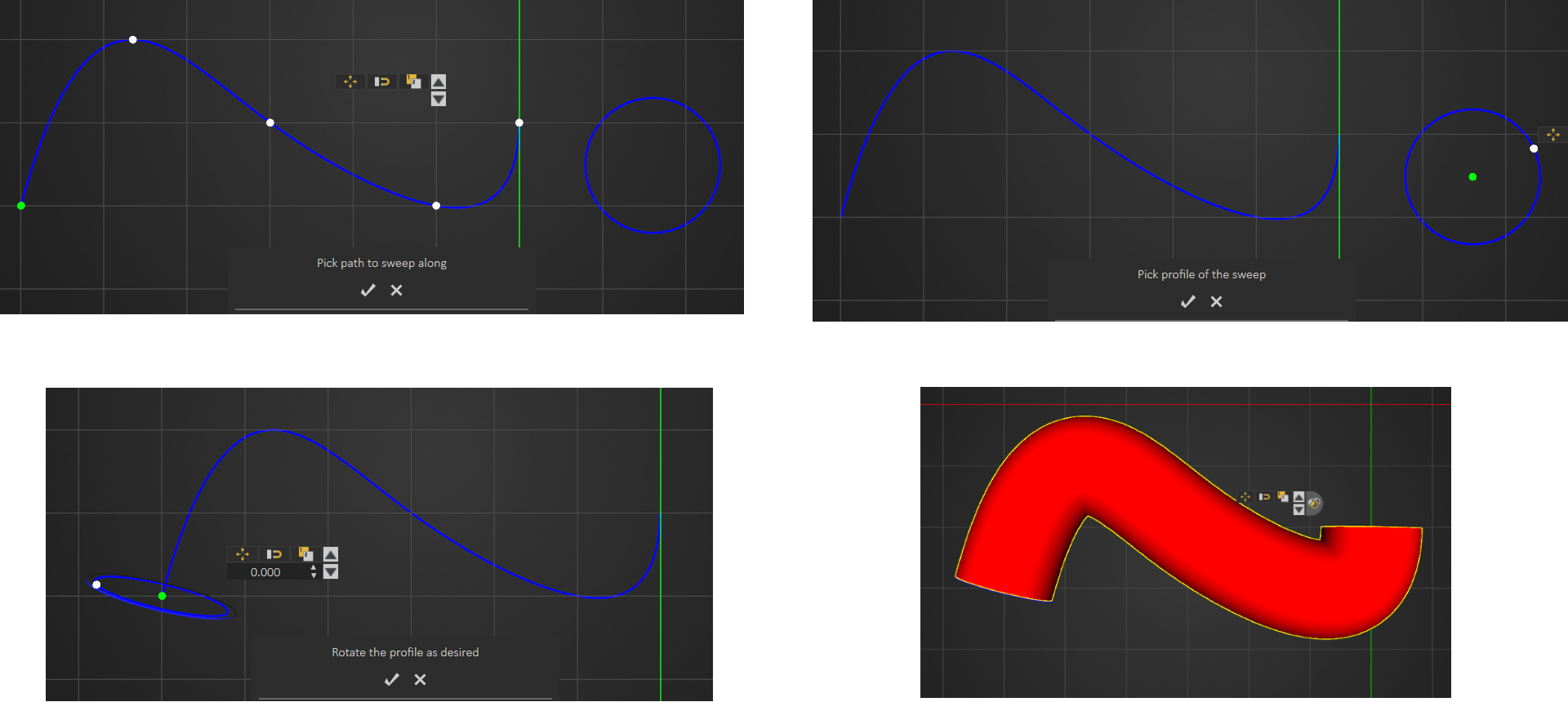

This feature enables users to extrude a shape along a created path. After creating the  path and shape, select Sweep form the menu, and start b picking the path to sweep along as the message indicates. Next select the profile to sweep, and rotate the profile as desired then click to create sweep.





Extrude

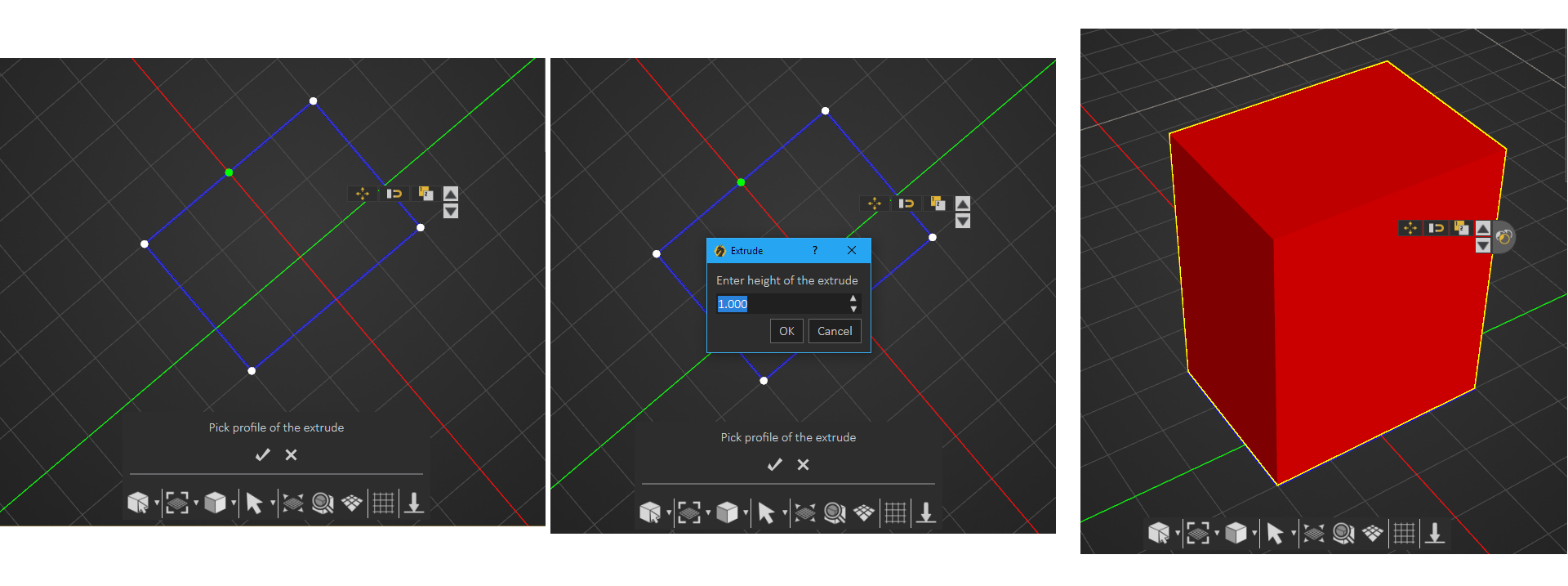

Create a closed 2D shape, then in the extrude window enter the height, and a 3D object will be created. If an open 2D shape is used the created model will be hollow.


Wire

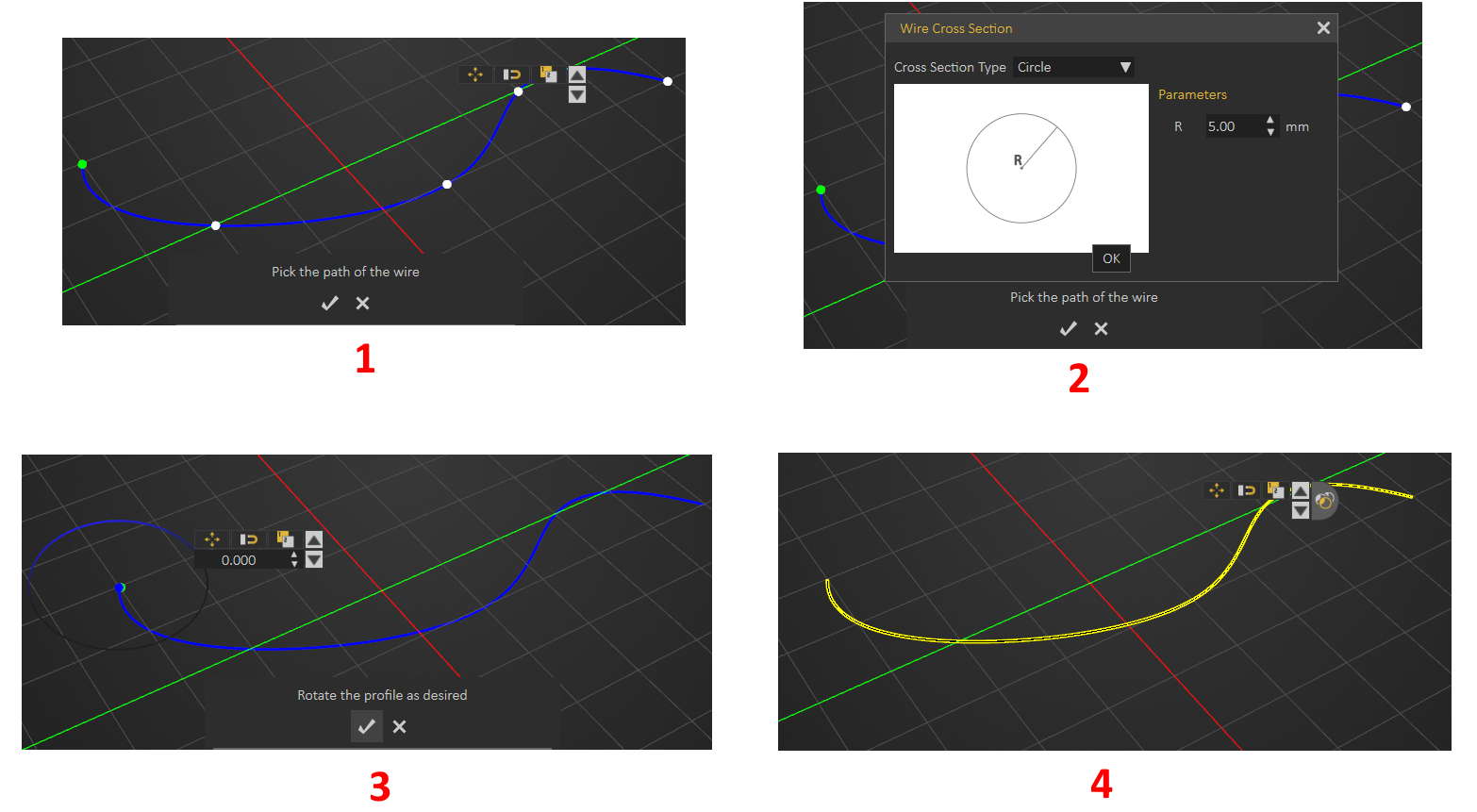

A path should be created first for the wire to follow, then the steps are as shown below.



Creating wires





Street


Simlab Composer's street creation tool expands design capabilities effortlessly and efficiently.

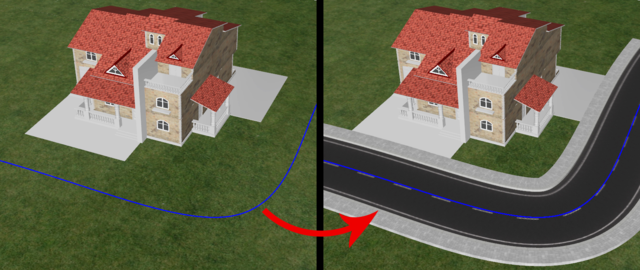

To create 3D Street using SimLab Composer, Follow the steps below:

  • Create a path for the street to follow
  • Select the path then select Street under Features from the Create menu

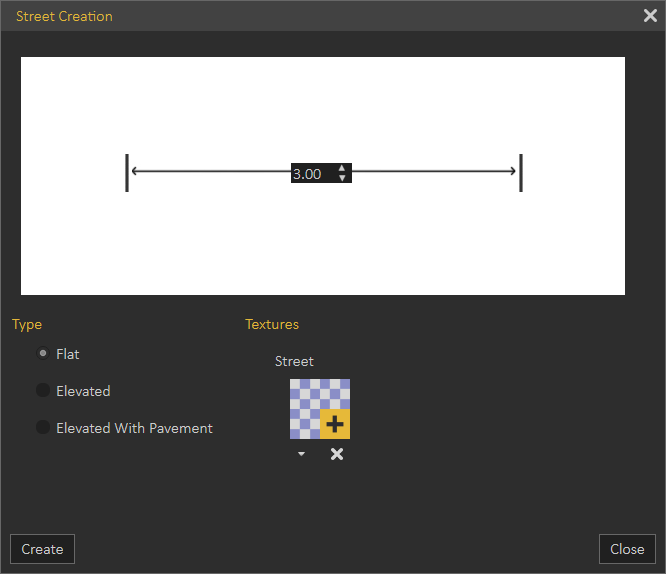

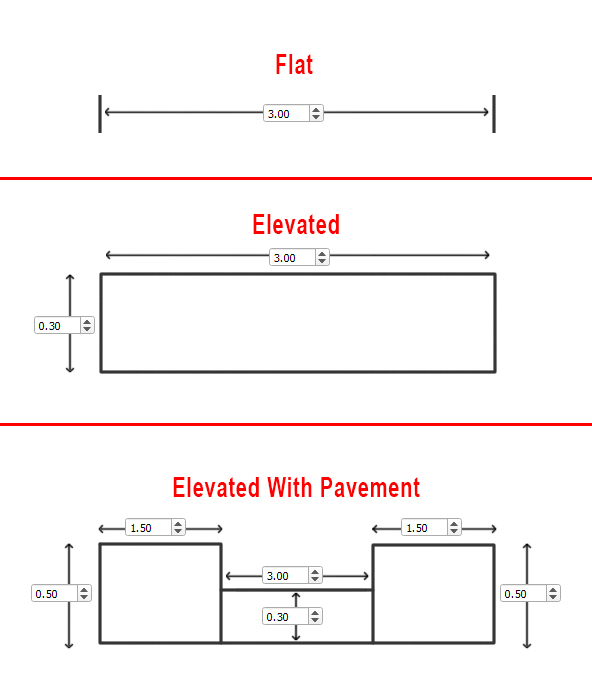

3. Select the type of street from the available options

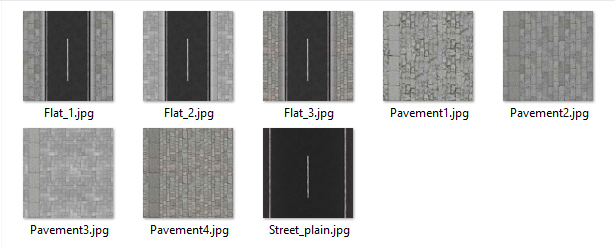

4. Select texture for street and pavement once you click on (+) in the textures side of the window.
 5. Click Create  and the street will appear in the 3D area and will be added to the Objects Tree
