Composer 9.1
×
Menu

Libraries tab

 /3D models

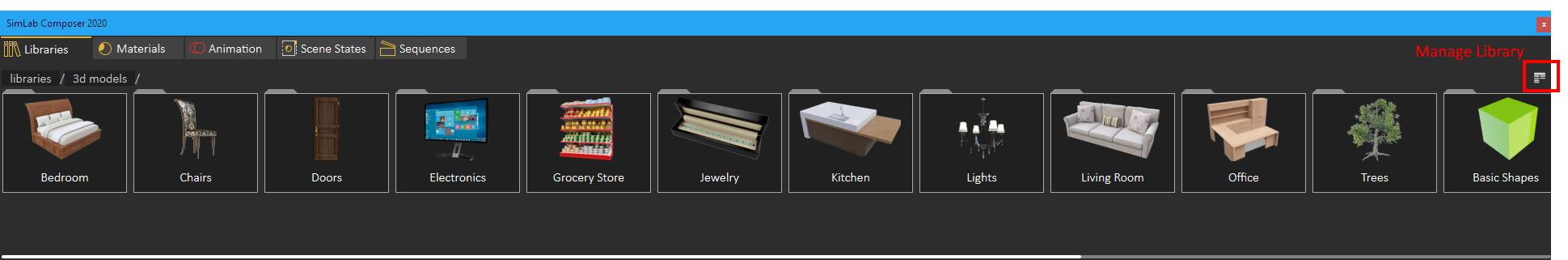

This tab grants the user access to a rich source of elements available in SimLab Composer, elements, such as 3D models, background images, and render settings. The user can add to the different element in this library through the Manage Library button.

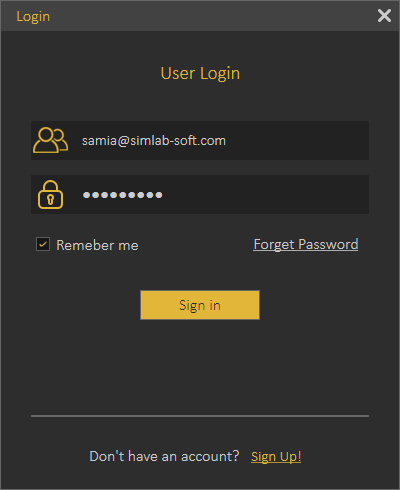

A rich library of 3D models is available under 3D Models. Explore the available models, and select the one to download where you need to Login or Sign Up if it's your first time.



Signing up is required only once, and login is needed every time you attempt to download 3D model in a session.




The user can download items from different libraries by double clicking on any of them, where the Download Item box appears. Click download then a progress bar will appear. , and after that the 3D model will be added to the data content of your SimLab application so you don't have to download that 3D model again.

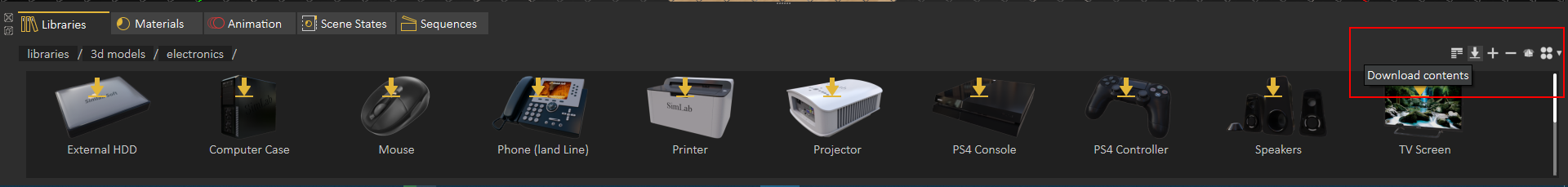

The user can download all content available in the active 3D models library at once by clicking the Download content button as shown in the image below.

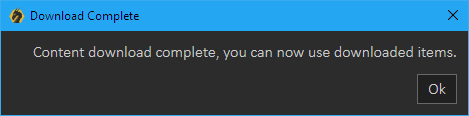

After the download process is successfully completed, the new item(s) will be directly available in the corresponding library without the need to download again or restart the Composer application. The user can add models to the 3D library through the
