Sequence Timeline



Create an Animation Sequence

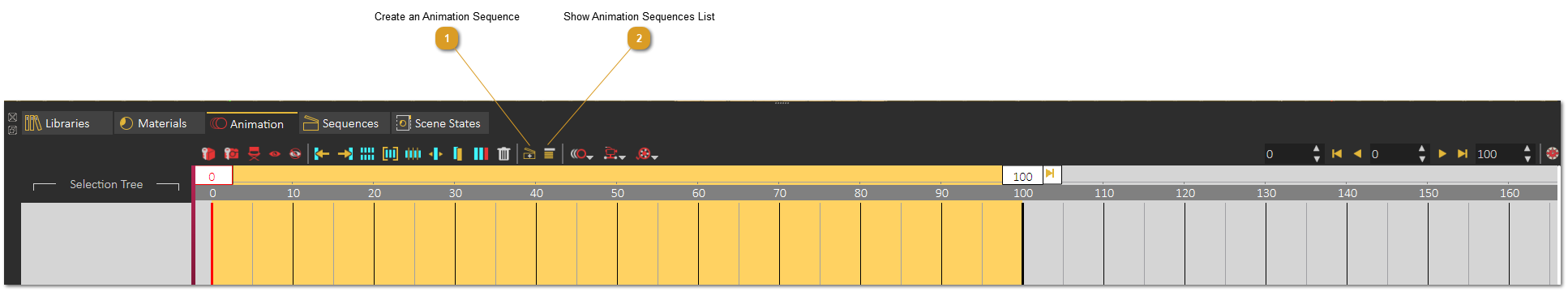

Users can create interactive animation sequences that can be implemented in VR experience in Simlab Viewer. Go to the animation workbench to reveal the
time line where animation keyframes and sequences can be created and managed.

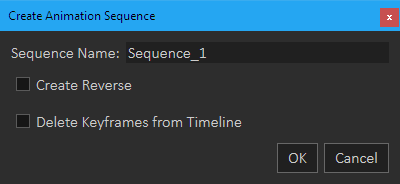

Select the animation keyframes created in the scene and click Create an Animation Sequence icon, to open its dialog shown below. Enter the name of the new sequence, the user has the option
to create a reverse of the created sequence, and to delete keyframes from timeline after the sequence creation.




Show Animation Sequences List

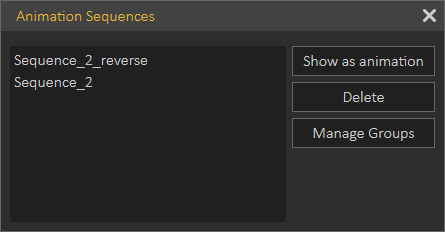

The user can view the created sequences by switching to the Sequences tab in the bottom panel, or by clicking Show Animation Sequence List in the Sequence Timeline. Once clicked the dialog
below will appear




  • Show as animation: If you delete the keyframe from the timeline, by clicking on this button you can return  the keyframe again on the timeline.
  • Delete: erase the selected sequence from the list.
  • Manage Groups: gives the user options to create, delete and rename Sequence groups.



Create Animation Sequences for VR:
