Visualize scene options



Visualize Scene Options

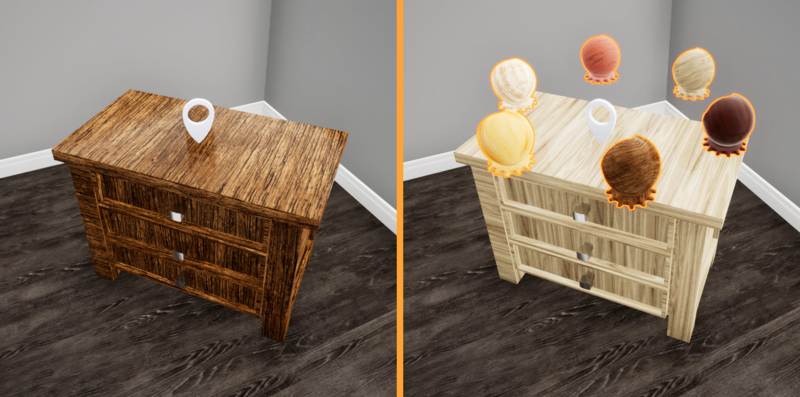

Visualize scene options (scene states and animation sequences) by displaying them as entities in 3D world for easier and practical VR experiences.



Press "3" on your keyboard in VR Viewer to show available Pins, "LBUTTON" to select Scene States/Animation Sequences which appear as entities from the Pins.



Number
Description
1
 A Trigger displays Pins if interacted by the user in SimLab VR Viewer. To add a Trigger select a Scene Node from Tree or from the 3D Area.
2
Remove a Trigger and eleminate any associated pins and scene options.
3
The list of Triggers.
4
Activate Scene States library to drag-and-drop Scene States into Pin nodes.
5
Activate Animation Sequences library to drag-and-drop Scene States into Pin nodes.
6
Add a Pin node to the current diagram, a Pin holds scene options chosen by the user. Once added, you can drag-and-drop either Scene States or Animation Sequences from their corresponding libraries to it.
7
Remove the selected Pin node from its diagram.
8
Watch an online video tutorial about how to visualize scene options.
9
(VR List) you can drag-and-drop Scene States/Animation Sequences here from their corresponding libraries.
10
Scene States/Animation Sequences.
11
List Properties, you can choose the shapes to display Scene States/Animation Sequences in VR Viewer.




  • To use Visualize Scene Options feature, Follow the steps below:

1. Open the SimLab Composer.

2. Create multiple Scene States/Animation Sequence (Create at least two).

3. From Interactions menu click Visualize Scene Options.

4. Select the object for which to make a list, Ex: Bedside Table, select the table model then Add a Trigger by click

5. The object name (Bedside Table) should appear in the Pin and Scene Options side as shown in image below.

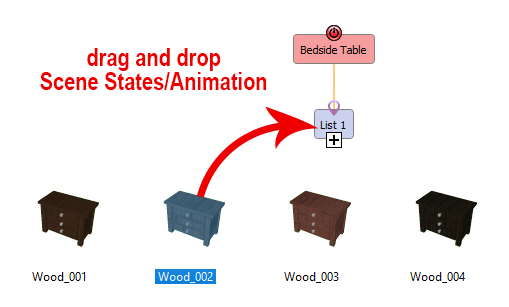

6. Now drag and drop Scene States/Animation Sequence (created in step two) from Scene States Library into the VR List1 one by one.

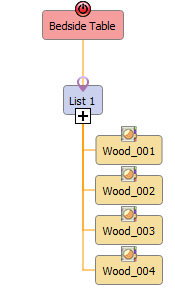

7. The Scene States/Animation Sequence will appear under the VR List1 as shown in image below.

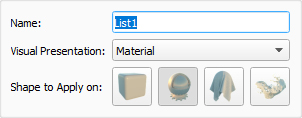

8. Change the name of list and choose the shapes to display Scene States/Animation Sequences in VR Viewer from List Properties when click


9. When done, click Save


In the Video below, you can show how to Visualize Scene Options for VR and Mobile.
