With this feature users can insert ready models into the scene such as tables, chairs, doors, trees and many more directly in VR Viewer without the need to go back to SimLab Composer and run the viewer again. Also new models can be added into the Catalog and shared with the others online.
To create the VR Catalog into the Simlab Composer VR Viewer following the steps below:
1. Export your scenes/models as a .vrpackege into the same folder in your device as shown in the screenshot below:
2. Create a preview image (PNG) for the catalog to display it into the catalog menu in VR Viewer, a square image with size 256x256 px is recommended.
3. Select Generate Catalog and select the folder containing the VR Packages, and select the preview image. Give a name to the catalog, and click Generate. The new "*.vrcatalog" will be created in the same folder where the "*.vrpackege" models are saved.

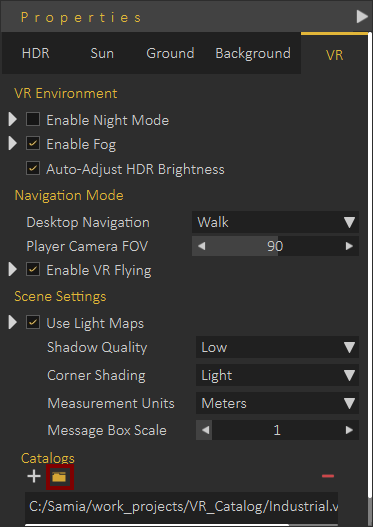

4. From the object Tree select Environment, then in the Properties dialog / VR tab, select Add from file (The folder icon) then select the (*.vrcatalog) created.

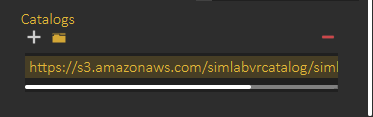

The (*.vrcatalog) file can be uploaded online to a website, and its URL can be added by press the plus icon.

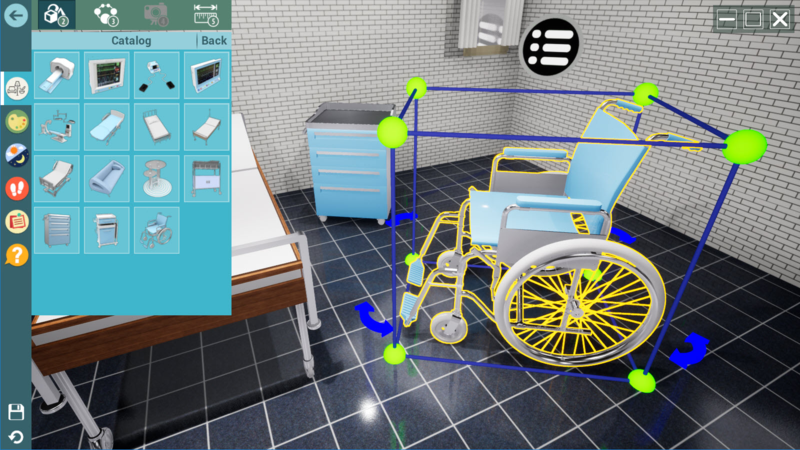

Now the all models in the Industrial catalog, we created, will appear into the Catalog menu in the VR Viewer, just one click on the model to insert it into the scene.
Generate Catalog List
In this dialog the user can add more than one (*.vrcatalog) file from local computer or website "as a url link", then Save it as a .vrcataloglist. This catalog list can be Loaded into other scenes to be used in VR Viewer.
The tutorial below shows how to use models from VR catalog in the SimLab Composer VR Viewer.
