360 Image



What is a 360 image?

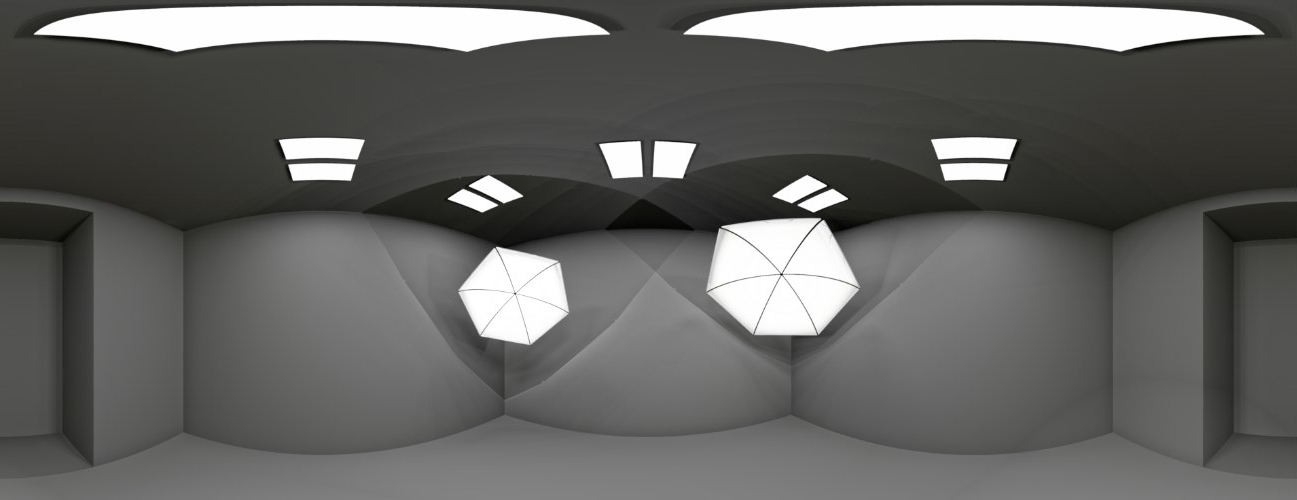

A 360 or a panorama image, is a special type of image that allows the user to experience being inside a 3D scene, the user can view the scene
on a mobile, or using Facebook or other viewers.






How to create a 360 image?

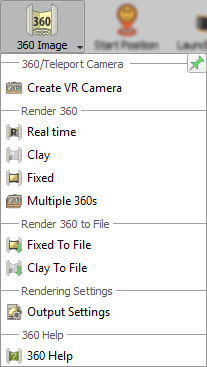

Creating a 360 image using SimLab Composer is very simple, first you need to create a VR camera, place it in the scene, then select the VR
camera, and render a 360 image.


This process is shown in the following tutorial .




Sharing 360 images on facebook?

Facebook has one extra restriction on 360 images to be automatically detected, width to height ratio should be 2 to 1, for example
if width is 2000, height on the image should be 1000



How to embed and use a 360 image in a website?

  • Download photo-sphere-viewer JavaScript library.
  • Added it in your website files.
  • Embed the necessary JavaScript files needed such as: three.min.js, photo-sphere-viewer.js

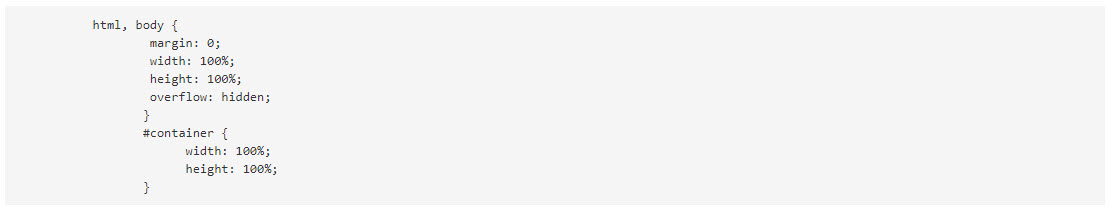

  • Add CSS:


  • In your body tag create container for 360 images:

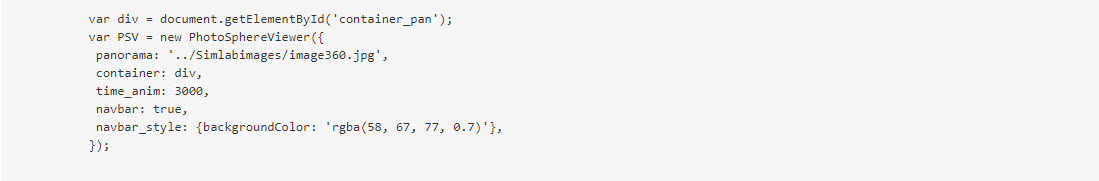

  • Then Include JavaScript Code:

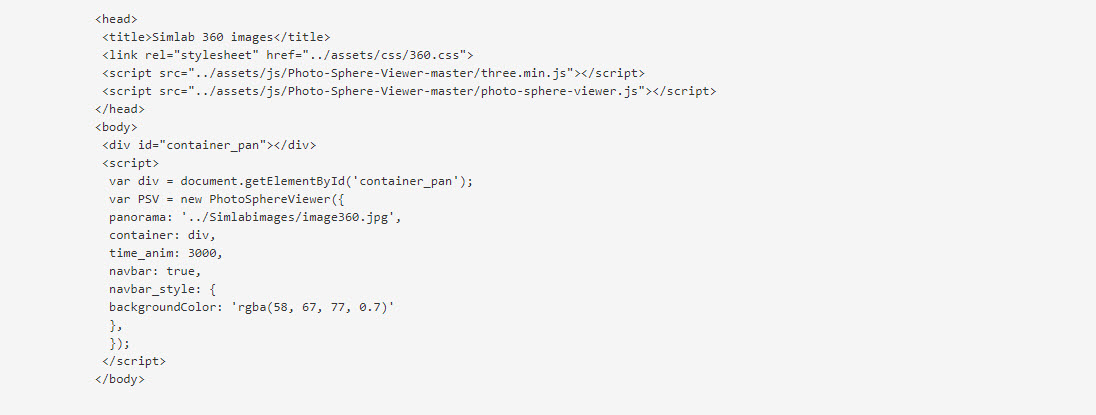

  • Finally it will look like this :


For more details and examples on how to embed a 360 image in a website visit these links: Link 1, Link 2
