Go to launch viewer menu » Click Start Desktop Viewer.
In object tree you will notice that the shape of the icon has changed to the ground shape.

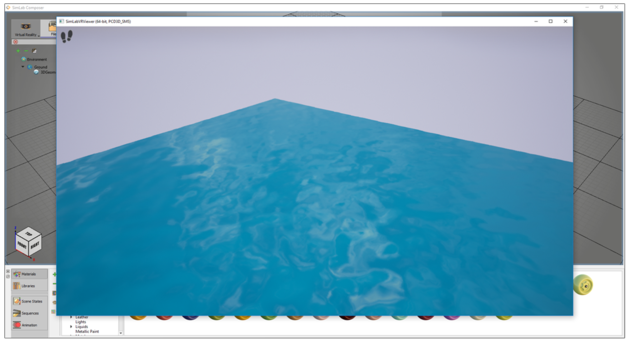

The water settings for VR workbench can be one of three options:
Water color: the user can select a color to use for the water.
Water Depth and Water Speed: These two parameters can be used to Make realistic water surface and configure its color, depth, and speed.
Make Ground (VR only)
Makes object available for teleport.
Press and hold to activate Teleportation mode. Then Release to teleport to a valid destination.

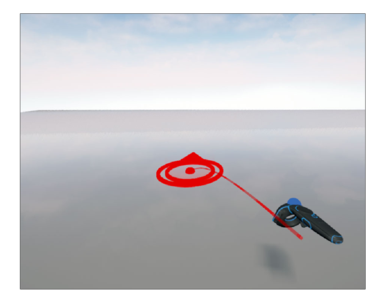

A red teleportation pointer indicates possible teleportation on an object.
A green teleportation pointer indicates forbidden teleportation on an object.

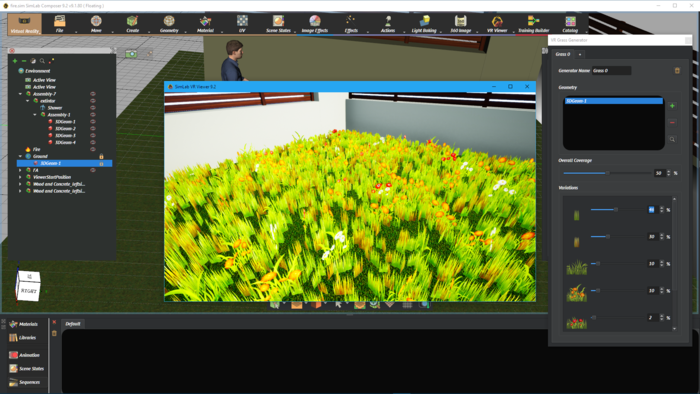

Grass
Enable users to add realistic grass effect to VR scenes.
Selecting this VR effect will open the VR Grass Generator dialog. In it the user can set the parameters for the grass to be created.
They include:
- Generator Name
- Geometry the grass should be added to; select the geometry then click (+)
- Overall Coverage with grass from the selected object
- The percentage of the different kinds of grass to be generated
To remove the grass effect, select the Geometry in the VR Grass Generator dialog and click (-), closing the dialog alone won't remove the grass effect.
