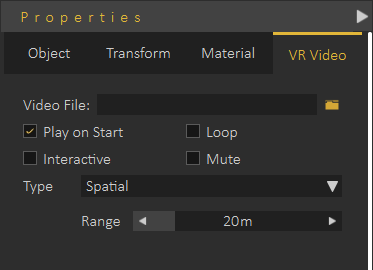

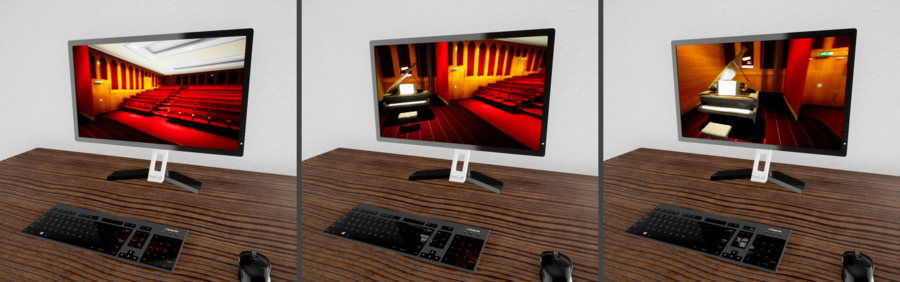

With Make Video effect, the user needs to select the 3D object to become video first, then select the video, mp4 format. In the VR Video tab of the Properties display properties can be set.

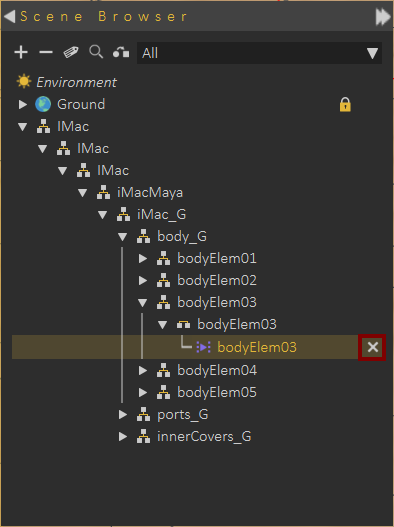

To remove a video click the "X" mark in the Object Tree next to the 3D geometry including the video.
Video Action response in VR Training Builder can be used to control the Video play in VR. It can be used to pause, play, toggle, or seek in VR, as a response to an event. For more info about Video Actions in this section SimLab Actions.
Create Sound
This function adds 3D Sound object to the scene, and its Object Tree. Selecting the 3D Sound form the tree will display its properties in the Properties Panel, VR Sound tab. The 3D sound object occupies a location in the 3D scene.
The user can select the sound file to use, in this tab. The way the sound will be played can be set to play once, by selecting Play on Start, or to continue playing in a Loop.

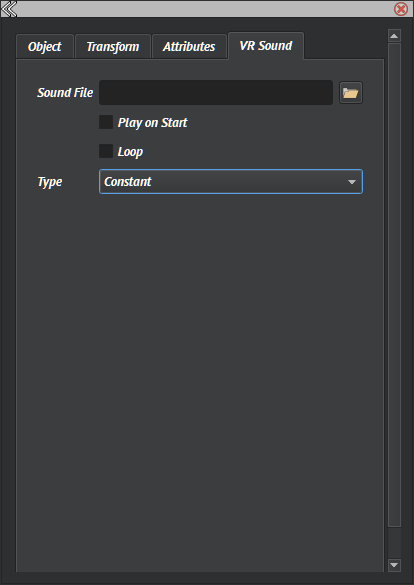

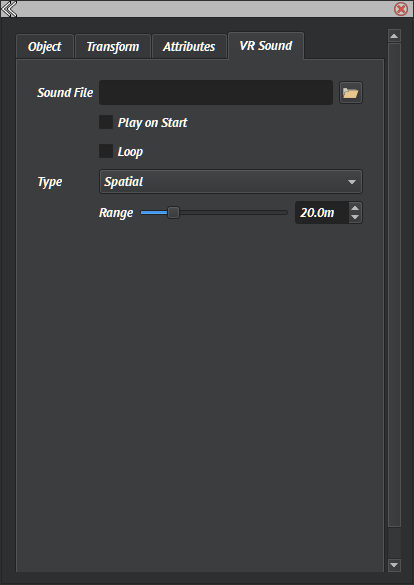

The type of the 3D Sound can either be Spatial, that is specific for a certain area with the ability to set the Rage of effect. The other type is for the sound to be Constant among the whole scene area.
Create Web Browser

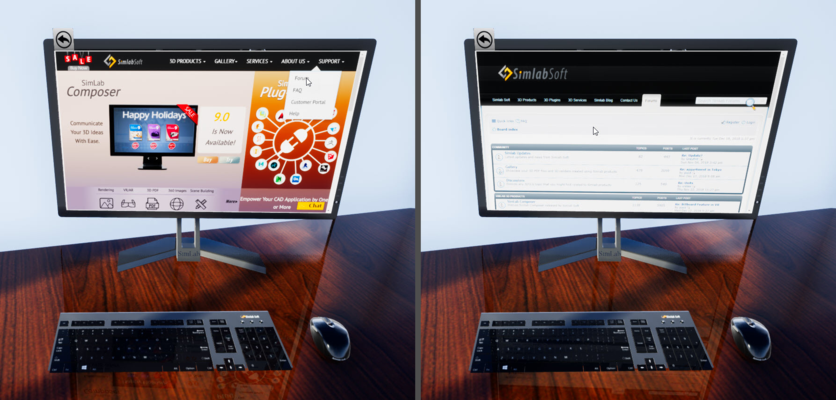

Allows the user to add an active web browser screento the VR scene.

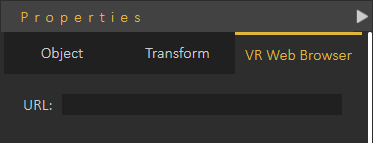

When the user selects this option, a new object like a flat screen named "VR Web Browser" will appear in the 3D area, and added to the objects tree. In its Properties dialog, under the VR Web Browser tab, the user can add web link in the URL field as shown in the image below. The user can change the width and height of the Web browser plane using the white points that appear on it when selected. Click on one of the white points and an arrow will appear, use it for moving the object.
Create Surveillance Plane
Creates VR surveillance plane in the 3D area which can be linked to a VR camera in the scene to display its view.
