Boolean operations Group



Boolean Operations

The boolean operations are smart tools that ease the process of performing simple modeling tasks within SimLab Composer and without the need to go back to the cad design application.

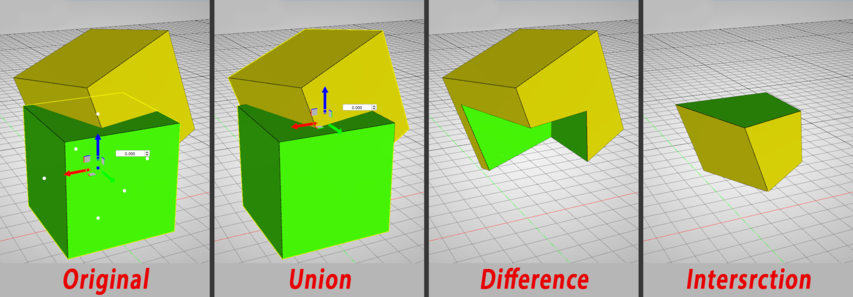

Union boolean operation: removes the intersecting parts of objects or set of objects, while preserving the remaining part of the geometries.
Difference boolean operation: deducts the shape and volume of one object or set of objects from another object or set of objects.
Intersrction boolean operation: preserves the intersecting parts of two objects or set of objects, while removing the remaining part of the geometries.


Simlab Composer aims to simplify the 3D visualization process for the user, offering powerful and easy to use tools that can significantly improve the overall workflow, and allow the user to focus more on creativity rather than exhausting technicalities.
